Video Rack – Back Patch Panel

The panel on the back of the video rack, numbered left to right as you face it. Match each cable to its number.

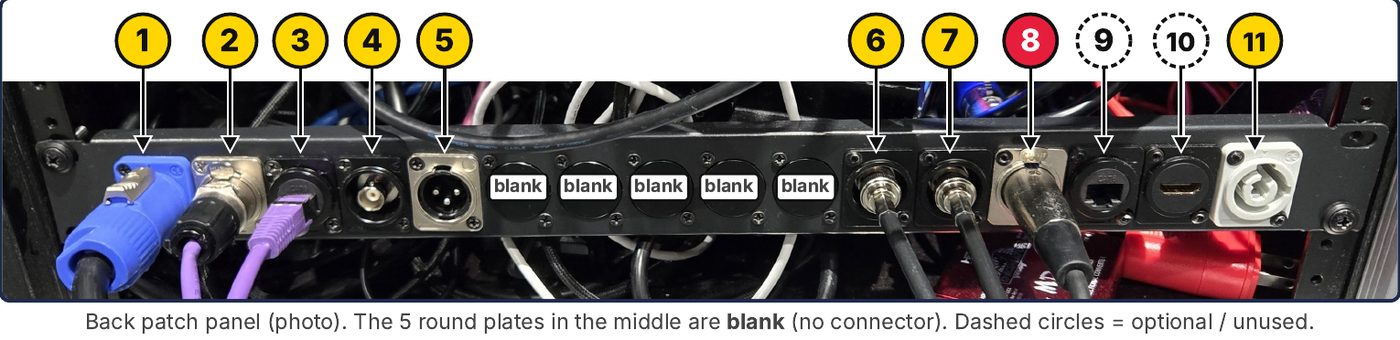

Back patch panel. The 5 round plates in the middle are blank. Dashed circles = optional / unused. (tap to enlarge)

⚠ Do NOT plug the speaker into #8. #8 is DMX (lighting) and is unused. It looks like the speaker XLR. The EV speaker cable goes in #5 (left side, next to the round SDI jack).

#	Plug in	Goes to
1	Blue powerCON	POWER IN → wall outlet
2	AES (etherCON)	→ IEM rack #2 (AES IN)
3	Data (network)	→ IEM rack #3 (Data IN)
4	SDI OUT (round BNC)	→ LED wall: SDI cable to the NovaStar SDI input
5	XLR OUT	→ EV speaker, near house left
6 7	BNC	→ RF Venue shark fin antenna (#6 + #7: attach the 2 short antennas on the side)
8	XLR	DMX – UNUSED. Not the speaker!
9	RJ45 data	Optional: TV NDI receiver, if used
10	HDMI	Unused – leave empty
11	Grey powerCON	POWER OUT → TV loom

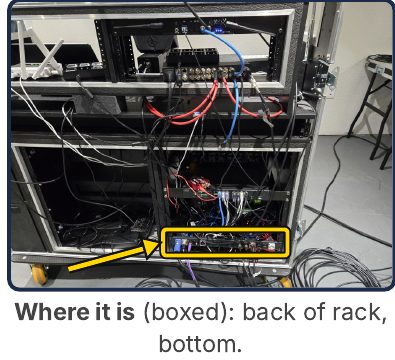

Where it is (boxed): back of rack, bottom. (tap to enlarge)

▶ Startup (Mac Mini)

Turn on the Mac Mini (the power button is on the bottom side).
Log in (password: video), open LightKey, and load the "Hilton 2" file.
Open Wing Edit as needed.

✓ Setup checklist

#1 Power in → wall outlet
#2 + #3 → IEM rack
#4 SDI → NovaStar SDI input
#5 XLR → EV, near house left
#6 + #7 → shark fin + 2 side antennas
#11 Power out → TV loom
#9 TV NDI receiver (only if used)
Leave #8 (DMX) and #10 (HDMI) empty
